Control and telemetry controller - KUiT-862
Characteristics:
- RS-485 control interface:
- relay control outputs (normally open contact) - 8 pcs;
- measurement of control temperatures (number of temperature control channels - 6 pcs.);
- measurement of control pressures (number of inputs (4-20mA) for pressure control - 4 pcs.);
- counting of impulses from an external source of impulse signal based on the Hall sensor (the number of frequency-impulse inputs of impulse counters - 3 pcs.);
- control of the status of discrete inputs (the number of discrete inputs of the type (closed / open) - 3 pcs.
Control and telemetry controller - KUiT-553
Characteristics:
- RS-485 control interface:
- relay control outputs (normally open contact) - 5 pcs;
- measurement of control temperatures (number of temperature control channels - 5 pcs.);
- measurement of control pressures (number of inputs (4-20mA) for pressure control - 3 pcs.);
- measuring time intervals with a timer function (start / stop) and generating relay control signals when the timer is triggered;
- counting of impulses from an external source of impulse signal based on the Hall sensor (the number of frequency-impulse inputs of impulse counters - 3 pcs.);
- control of the status of discrete inputs (the number of discrete inputs of the type (closed / open) - 2 pcs.

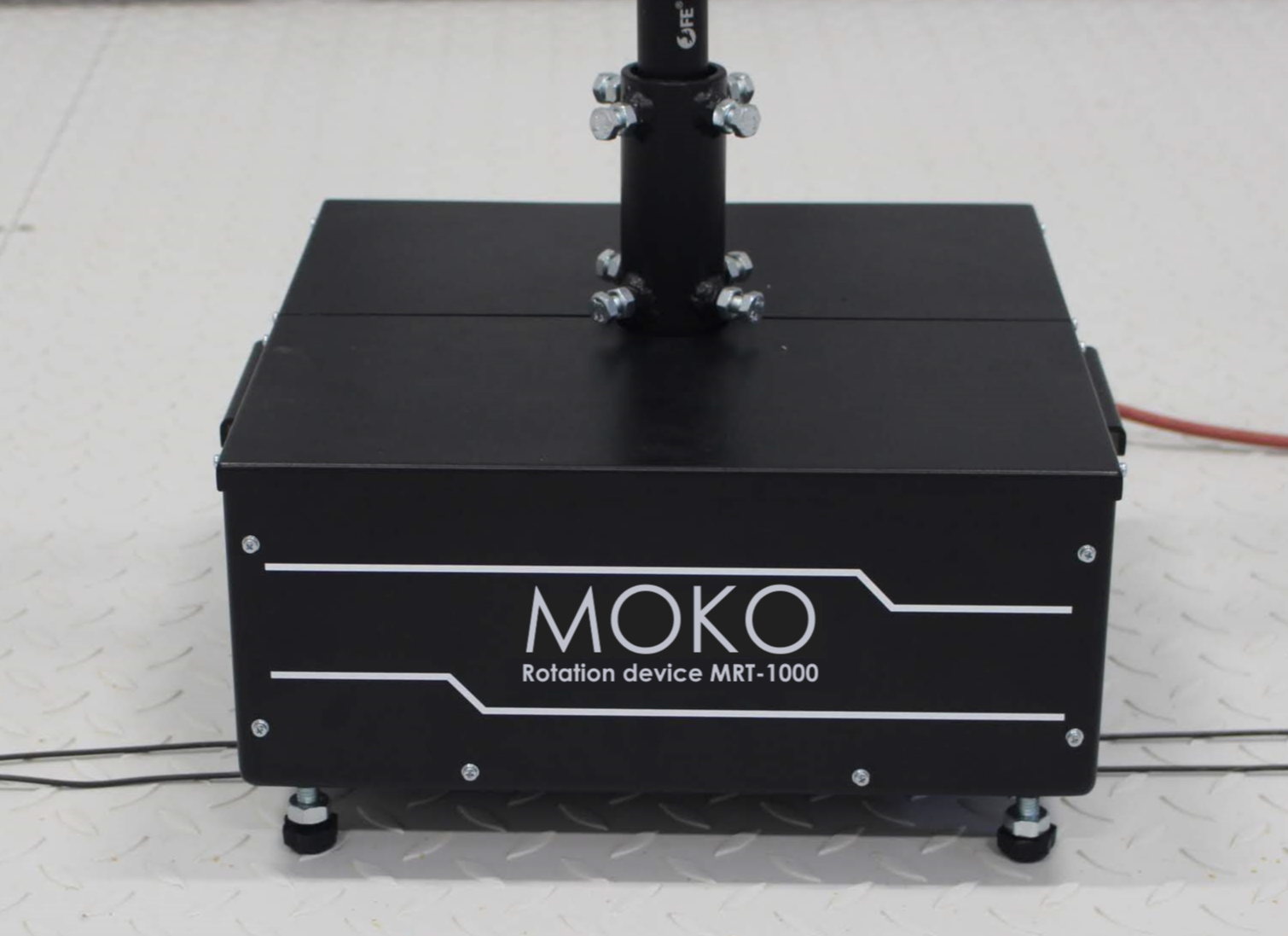

Rotary device MRT-1000
The automatic rotary device is designed to mount and control the change in speed and acceleration of attachments (structures) for solving tasks requiring precise positioning in space.
Characteristics:
- COM, USB control interface
- Automatic backlash, deg. 0.2
- Adjustable positioning speed, deg / sec.
from 0.3 to 6.6
- Moment of force, kgf * m 12
- Overall dimensions, cm, no more than 125 x 40 x 40
- Weight, kg, no more than 20.0

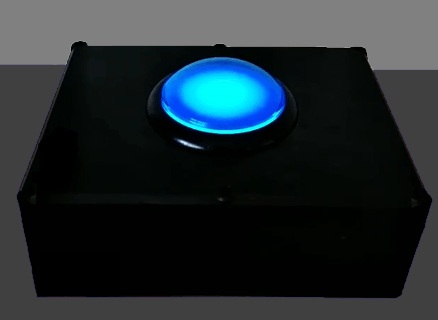

JB1 WI-FI
The device is designed to register pressing a button.
Data transmission is carried out via WI-FI radio channel.
Used for interactive purposes.
